Confusion about Ruger MK IV magazines - Need some help

Help Support Ruger Forum:

gunsrfun1

Bearcat
Joined
Sep 8, 2010
Messages
41
Location
PA
I bought a used Ruger MK IV Target (NOT the 22/45) online, advertised as coming with three magazines. When I went to my FFL tonight to pick it up, I was surprised to find what I "thought" were three MK II magazines. (They sure look like the mags I use in my MK II.)

They inserted into the gun ok, but there seemed to be some space between the bottom of the magwell and the baseplate; almost like it needed a different baseplate to cover the space. I think that's because the heel mag release is no longer there, so there is a space of sorts between the baseplate and the bottom of the frame?

I know that the MK IV 22/45 mags have an elongated baseplate, and I guess I wrongly assumed that the regular MK IV would also.

So ... I am trying to figure out how to determine if these mags are really MK IV mags, vs. MK II.

Based on this description, should I look for a notch about 2/3 of the way up the right side of the mag body? Is that what delineates a MK IV mag from a MK II mag?

I just want to be sure they gave me the right mags for the gun.

Thanks

Last edited:

contender

Ruger Guru
Joined
Sep 18, 2002
Messages
22,128
Location
Lake Lure NC USA
MKII mags do not have a notch, nor do they have a slot for the mag release button. The base pad doesn't have anything to do with the release or locking magazines in a MKIV.


Dan in MI

Moderator
Staff member
Moderator
Joined
Aug 9, 2003
Messages
3,023
Location
Davisburg, MI. USA

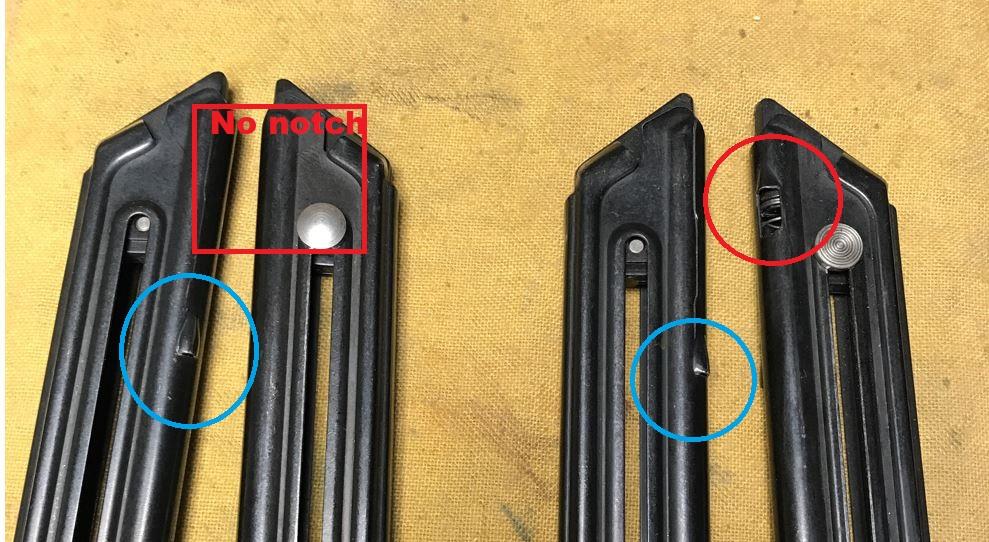

Ignoring the base pad you want the far right


Highstandardguy

Buckeye
Joined
May 16, 2008
Messages
1,150
Location
NC
Dan in MI,

If your second picture represents the two magazines on the right in your first picture, then a solid +1 for the one on the right of the second picture. However I'm a little confused by the magazine on the left. AFAIK the only magazine that had a protrusion for the magazine catch and no notch was for the 22/45 (AKA 22/45 MKII). This one does not have a 22/45 base plate. What am I missing?

HSG

Joined
Dec 11, 2002
Messages
8,130
Location
Ohio , U.S.A.
yes, folks often change the base plate from a Mark II,III or IV with the dog leg ones from the 22/45......the notches, come and go, and they work when the "other" components are in the grip frame..............or just the European style "bottom" catch of the old ones RST, MK I and MK II.......now to get them to hold 9 rounds?? or 10 rounds......;):cool::rolleyes:
