Low back Security Six
- Thread starter magnum0710
- Start date
Lowback on left, highback on right
Black lines at bottom are the same length
Lowback (left) shows more of the hammer at the bottom.
The top of the backstrap on a lowback is lower and caused the web of a larger hand to lop over the back of the frame which in turn would allow the hammer spur to pinch the web in recoil. So the frame was redesigned with a higher backstrap to give the web of the hand more surface area to better tolerate recoil without getting bitten by the spur.
In some verbiage direct from Ruger, they referred to the lowback as the "early slant-grip style". Lowback and highback were terms coined by collectors and I suspect it was Chad (chet15) from RENE that came up with those monikers.
"Slant Grip" and "Ball Breech" lingo from Ruger:
That was the letter included with the "RDA-94" Security Six that Ruger experimented on to build the first Pilorget extraction 9mm.
"Ball Breech" would refer to the rounded recoil shield from the earlier guns, later modified to what we now call the scalloped style.
That was the letter included with the "RDA-94" Security Six that Ruger experimented on to build the first Pilorget extraction 9mm.
"Ball Breech" would refer to the rounded recoil shield from the earlier guns, later modified to what we now call the scalloped style.
The Ruger Security Six guns (a 6" and a 4") with the GP-100 style roll mark on the barrel were made up for special engraving leaving room on the frame for the engraving. The 6" was for the FBI commerative and the 4" for a Sheriff's commerative.
The guns without the engraving were unused "overruns". The engraving was not factory but a 3rd. party. The factory provided the "blank canvas".
Sorry for the poor photos. If you look carefully or save and enlarge them, you can see the special markings on the barrel.
Terry T.
cwweld
Bearcat
I have a new in the box pair of Jay Scott Checkered Walnut Oversize Target Stocks for the low shelf Security Six. You would need BIG hands for them to be practical. My profile picture shows them mounted on my 150- they are too big for my hands. Thinking if I can't find a pair of Shooting Stars I may just take these to the belt sander unless someone else has another idea.So I found a good deal on a Security Six last month and couldn't pass it up. Stainless 4 inch, pretty much exactly what I wanted in a 357 revolver. Took it to the range and decided the factory wood grips do not go well with hot 357 so I ordered some rubber target grips. Come to find out the grips will not fit and that's when I learned about the low back Security Six.
I tried to modify the rubber grips but that did not work. The only aftermarket grips I can find are the Jay Scott grips but they don't look like they'd make a difference over the factory stocks, they look to be the same size. I can't find a set of the Herretts,which would be perfect, but I'm keeping an eye out. Does anyone here have any suggestions?
Someone on another forum said they modified a set of Pachmayr grips for a Redhawk to fit their low back but I can't get any more info on that. I'd like to know which Pachmayrs (presentation, gripper?) and how it was done exactly but this person hasn't got back to me. I'm thinking about trying these Tuff 1 universal grip covers I saw, I'm thinking if I overlap 2 or 3 it should give me the effect I'm looking for.
Anyone know of some grips I can make fit a low back? I'm not really trying to spend $200 on a set of custom grips.
What's really interesting is it has a 151 SN, just my luck since all the aftermarket grips say to make sure your SN is 151 or higher
I checked my grip supply and I have a number of different Herretts but alas, they are all for the high back (151- prefix) model.
- Joined
- Dec 9, 2013
- Messages
- 463
cwweld
Bearcat
I really appreciate you looking for me. Someday maybe a set will show up.
Thanks again !
I looked for a low back 6 inch for a long long time. Got very lucky that it’s in 99% condition AND the bonus of coming with these grips! I’m usually sticking with factory grips but must say these fit me very well and look great.I had a low back Security Six. I looked for sometime and found a set of Herretts made for the low back.
OP
magnum0710
Single-Sixer
I want a Speed Six next! Just waiting for the right deal to pop up locally so I can make a trade in. I may settle for an SP101 but I'd rather have the Six.
OP
magnum0710
Single-Sixer

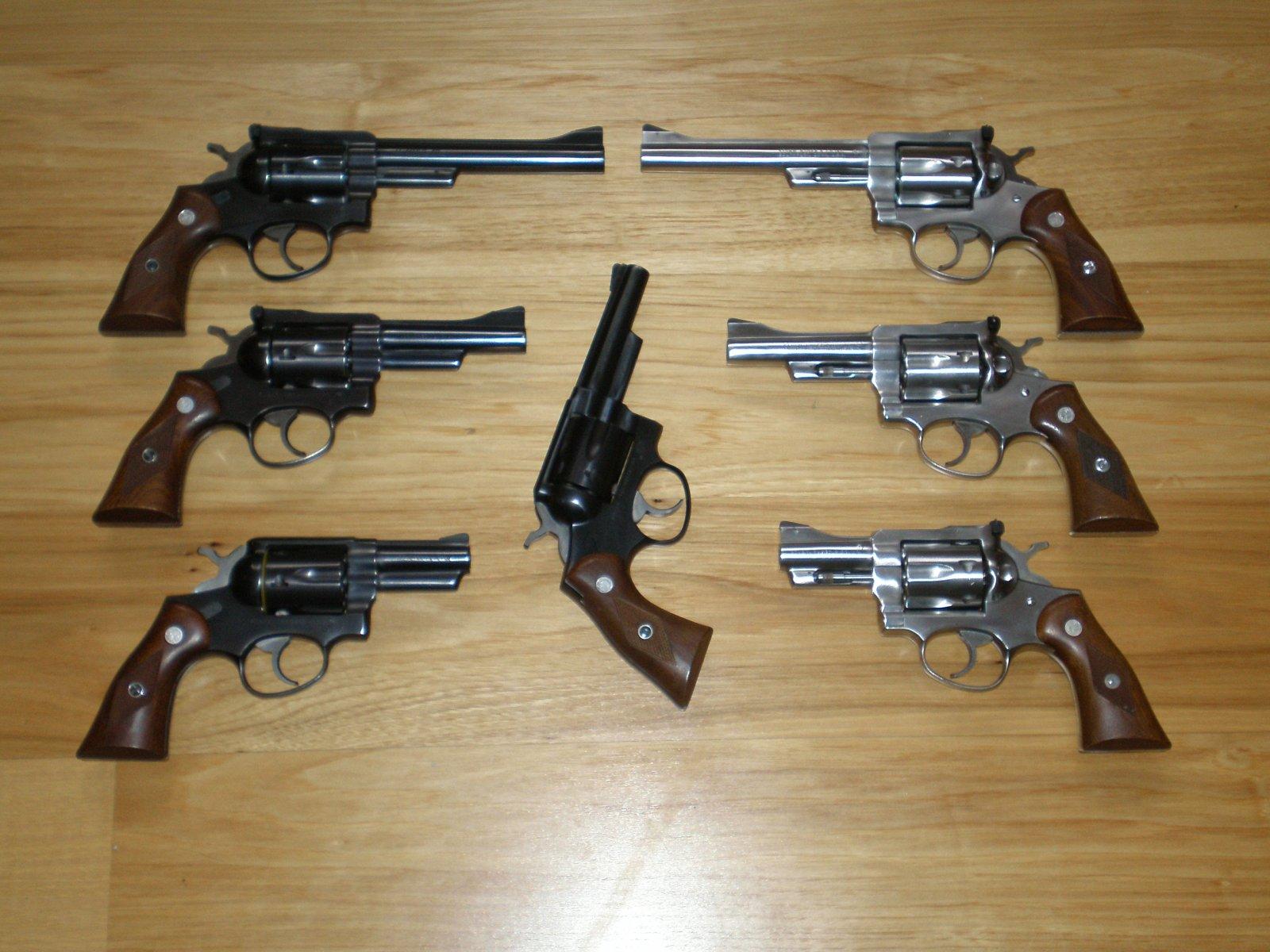

Beautiful collection Terry! If you ever decide to get rid of one of the snubbies let me know, the 4 inch doesn't carry as easily as I thought it would.
This is why I love this forum, got my Six almost a year ago and this thread just keeps going!
OP
magnum0710
Single-Sixer
Check this out! In my search for a worn but usable snubby I found this! Check out the buy it now price! Same one I have. Supposedly new but I'm not 100% sure it is. It looks like the finish was touched up and those are definitely aftermarket grips. I think they're Herretts but I could be wrong.
https://www.gunbroker.com/item/1036107371
https://www.gunbroker.com/item/1036107371
Those are Herrett Shooting Star grips. I'm watching this one to see how high it goes.
With it being Gunbroker, I wouldn't be surprised if it went higher than normal OR lower. It just depends if someone wants it bad enough or not many people interested. From the bidding so far, it's random people so it may stay low until right near the end. I'm watching it to see what happens.
Last edited:
OP
magnum0710
Single-Sixer
Still got 2 days, I'm surprised it's not higher but then again I highly doubt it's "new old stock" between the grips (which are sought after alone but still aftermarket) and the finish I can't imagine this one being new and unfired. It looks like the finish under the cylinder by the logo was touched up with a gray 3m pad but the person wasn't careful about it. I'd like to see how high it goes too. Right now it's right around what I paid for mine.
OP
magnum0710
Single-Sixer
I was pretty sure they were Herrett's but I wasn't 100% so I didn't want to call it out. It's been a while, I haven't looked at grips since I got the unfinished ones from you. Still haven't got em done
I will eventually just haven't had a lot of down time.
OP
magnum0710
Single-Sixer
That's what a rare version should go for, maybe a little more. Found a used Security Six snub but it's BEAT and they want $500. I decided to pass. Has slight rust and pitting, I know the snub nose Security Six is kind if rare since most of the snubs were the Speed Six but for as beat as it is I don't think I want to pay $500 for it.
Those new Rossis are getting to be more and more tempting
That was a common Security Six that brought $705, and with wrong grips. Nice box and shipper though.
I’m good that those common variations have increased a bit.
The Security Six snubs seem to bring a premium around here and you just hardly ever see one for sale.
I’m good that those common variations have increased a bit.
The Security Six snubs seem to bring a premium around here and you just hardly ever see one for sale.
OP
magnum0710
Single-Sixer
Another rare one on gunbroker, 150 SN stainless. Thought some of you might be interested while the bids are low.
https://www.gunbroker.com/item/1041992830
https://www.gunbroker.com/item/1041992830
Baxter6551
Single-Sixer
These folks make grips for the pre 150 prefix serial. Nice grips.
https://texasgrips.com/product/ruger-security-six-police-six-150-series-laminate-wood/
https://texasgrips.com/product/ruger-security-six-police-six-150-series-laminate-wood/
OP
magnum0710
Single-Sixer
I found the same exact one recently only it wasn't a low back version. I decided against it because it had pitting and some slight rust and they wanted too much for it. I may just be getting a 3 inch sp101, I'll know forsure in a few days
silverstates&W
Bearcat
i had Texas grips (referenced above) make some walnut 150 target grips in standard walnut for me to sell on e bay and i have them available now at 99.95
link too long to post but search security six 150 and you will see them.
great size,smaller than the big Jay Scotts that show up from time to time
Larry in Reno
link too long to post but search security six 150 and you will see them.
great size,smaller than the big Jay Scotts that show up from time to time
Larry in Reno
OP
magnum0710
Single-Sixer
I just got a set of old Mustangs, just came in the mail today.
Do the Texas grips cover the backstrap?
Do the Texas grips cover the backstrap?
silverstates&W
Bearcat
no
e bay item 175645053195
if the grip covers the backstrap on this model it makes it too big to be comfortable.
Larry
e bay item 175645053195
if the grip covers the backstrap on this model it makes it too big to be comfortable.
Larry
silverstates&W
Bearcat
and... mustangs have never been desribed as 'pretty'
thsese are!
thsese are!
