Hammer ID help

[hunter966]

Morning,

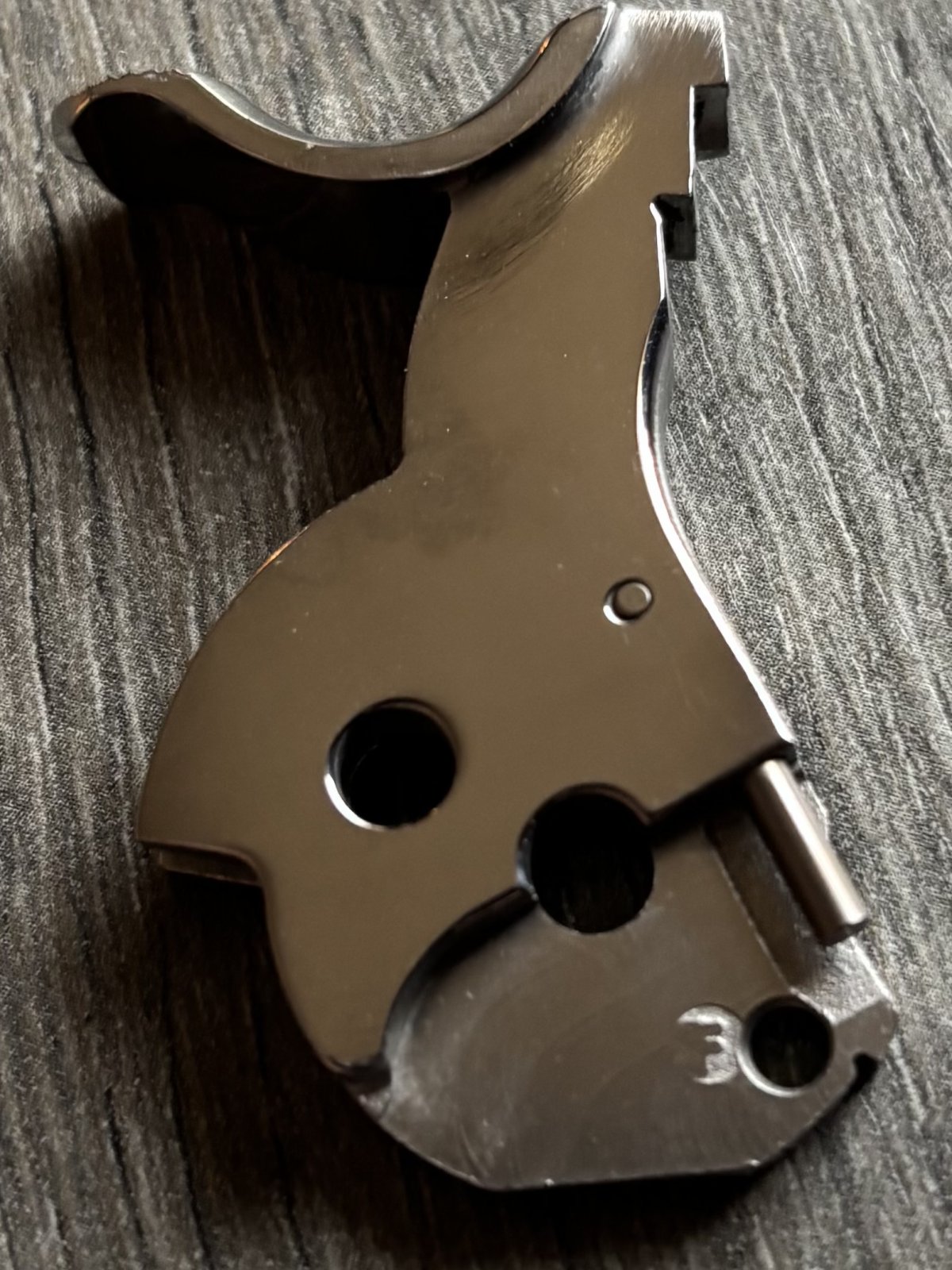

Years ago when Ruger would still sell us parts I ordered a hammer for my SBH, they sent me this stainless steel Bisley hammer instead.

I put it in the parts box and came across it last night, I think it might be for a Single Six but it's just a guess.

Can some of ya'll school me on what it fits?
Thanks hunter966



[contender]

Hammer height is a good way to determine if it'll fit a Single-Six or not. I'll see if I can put a picture here from my files about what to look at.



[contender]

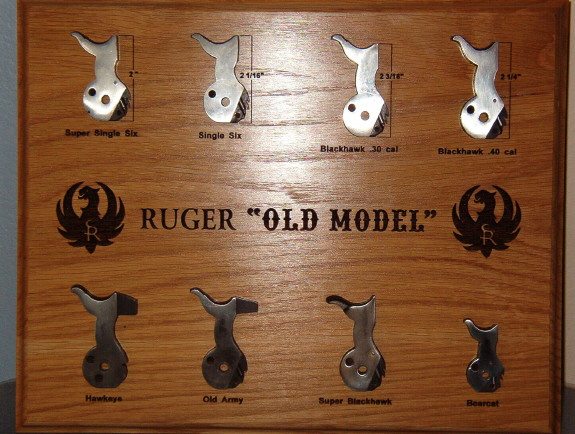

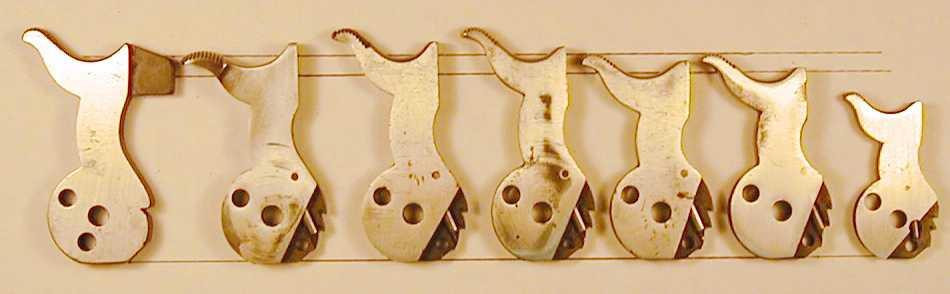

The pics are for the OM's,, BUT,, they do show the general sizes of each hammer.



[thinckley]

The width of the spur sure does look like a NM SBH hammer... None of my NM Single-Sixes have a wide hammer spur.



[hunter966]

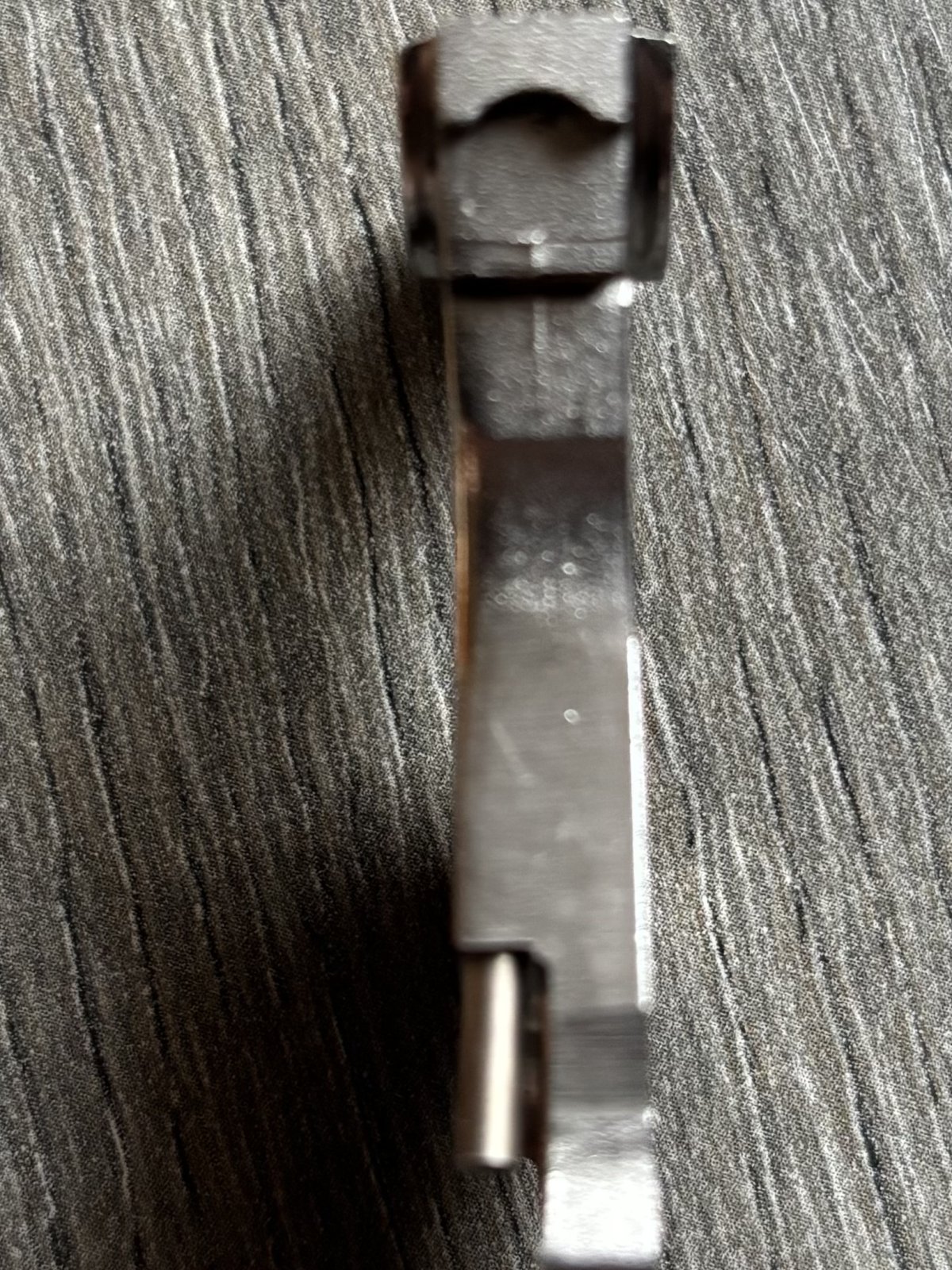

It's not a SBH hammer, but look at the 1st pic showing the "nose" with the half moon cut out, for lack of a better description.

Which gun would use a hammer with this cut out?



[thinckley]

It's not a SBH hammer, but look at the 1st pic showing the "nose" with the half moon cut out, for lack of a better description.

Which gun would use a hammer with this cut out?

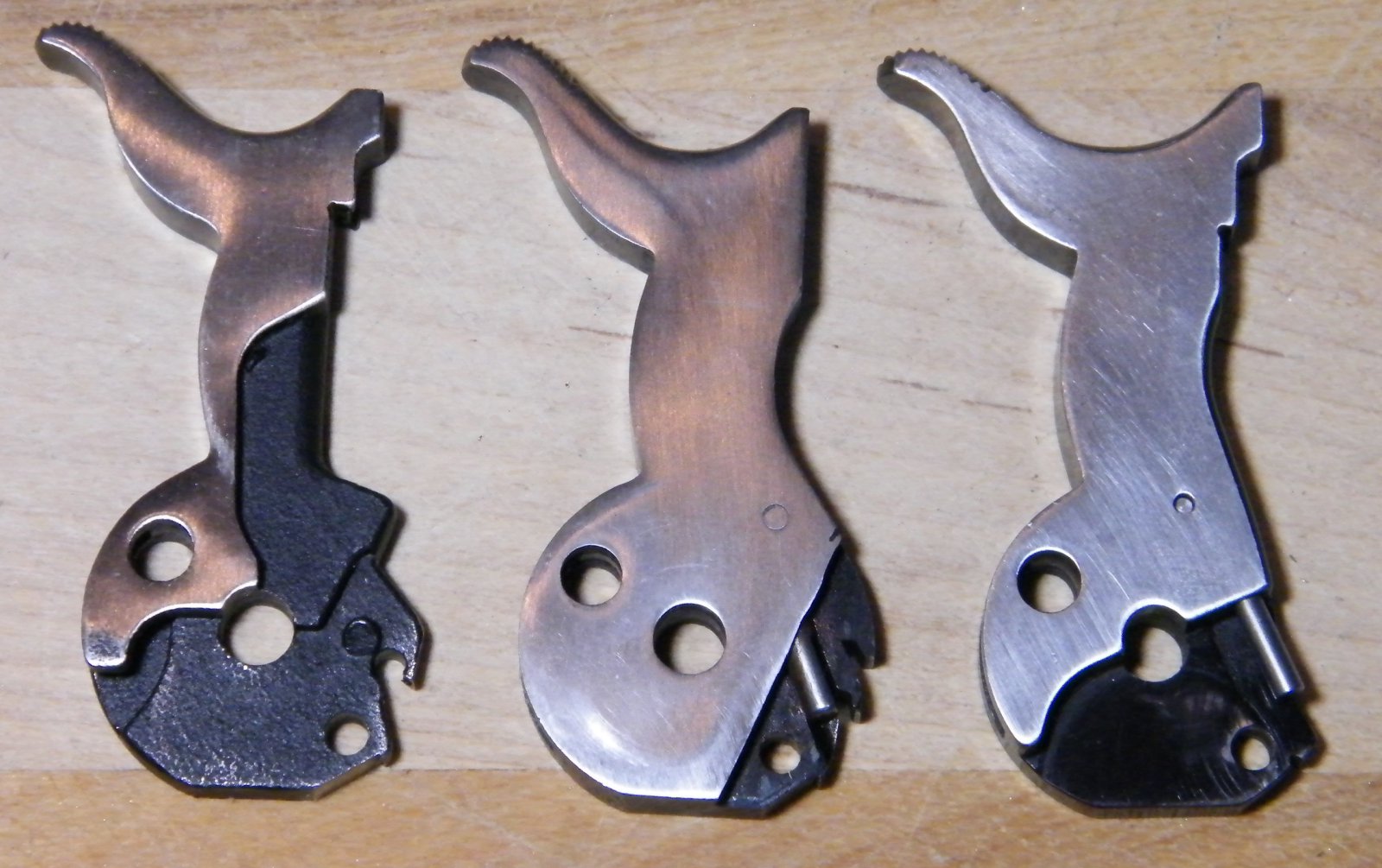

All new models (Left conversion, center OM, right NM)

These are blackhawks, not SBH, but similar internals.



[hunter966]

But what about the half moon cut out on the hammer nose?

I put the above pictured hammer next to a SBH hammer, the one above is shorter and won't fit on a SBH or Blackhawk pistol, it is shorter.



[BoggusDeal]

That's for a Single-Six .32 Mag. The half moon cut out is to clear the firing in as it was moved up in the frame. That is a very rare hammer.



[thinckley]

Hammer Assembly, .32 Cal., Blued, Used Factory Original

RUGER BISLEY - SINGLE SIX VERSION Hammer Assembly, .32 Cal., Blued, Used Factory Original

www.gunpartscorp.com

Looks like @BoggusDeal knows what he is talking about!



[BoggusDeal]

Hammer Assembly, .32 Cal., Blued, Used Factory Original

RUGER BISLEY - SINGLE SIX VERSION Hammer Assembly, .32 Cal., Blued, Used Factory Original

www.gunpartscorp.com

Looks like @BoggusDeal knows what he is talking about!

Like the Farmer's insurance commercial, "we know a thing or two, because we've seen a thing or two".
Thanks!



[hunter966]

I appreciate the help, thanks.



[contender]

Good catch BoggusDeal,, I missed that part.



[BoggusDeal]

Good catch BoggusDeal,, I missed that part.

Blind hogs and acorns…



[contender]

Ooohh,, that smarts!



[G2]

Not a "Rare Hammer" a harder to acquire hammer,,, Only because it's No longer sold thru the traditional part suppliers, Midway, Brownells, Numrich. to mention a few.

While it did come on Bisley 32H&R's it also comes on 22's & 327's, was and is still made in Carbon & Stainless. The last factory Carbon Bisley was the 327 Model 8160. Don't let that Model # fool you, it will show up as a Single 10. But I personally have a 5.5" Blued Bisley that were produced in limited #'s with a SN# that will say it's a 8160 single 10.
I always wanted a Brass Keith #5 Grip Frame Gun, this was the gun that was used for the platform, and it has the hammer as for mentioned, only in Carbon.

Same hammer here on 22 & 32 Bisleys. (22 top/ 32 bottom)

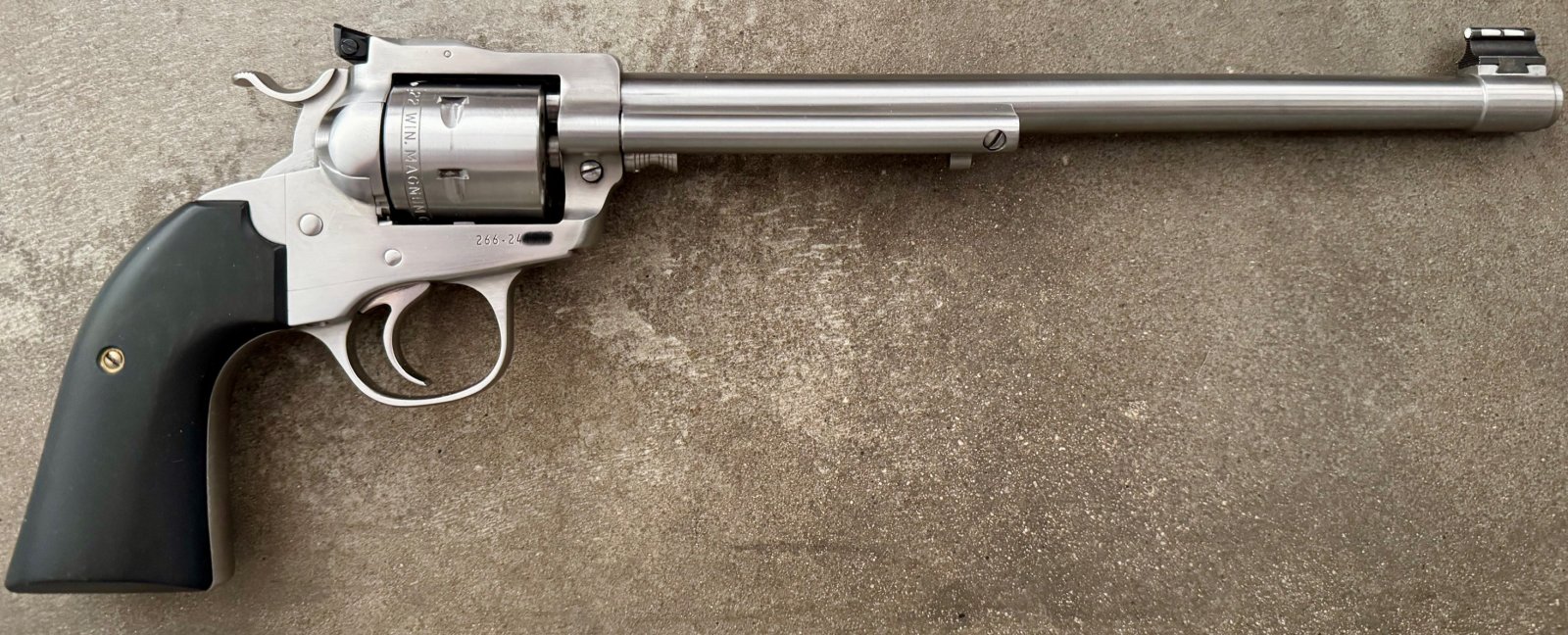

This Single Six started life as a 6.5" Stainless Bisley, 22LR only, Model 00681 (2019) and has hammer as pictured.

Now has a 10.5" 10/22 Barrel and a 22 MAGNUM Cylinder. Williams Rear Fire Sight and HiViz front. Black Hogue Micarta Grips/ highly customized. Belt Mountain #5 Basepin. Do still have the 22 LR cylinder, but not so sure I will ever use it.
My Tribute to John Taffin he had a couple of these in various configurations.

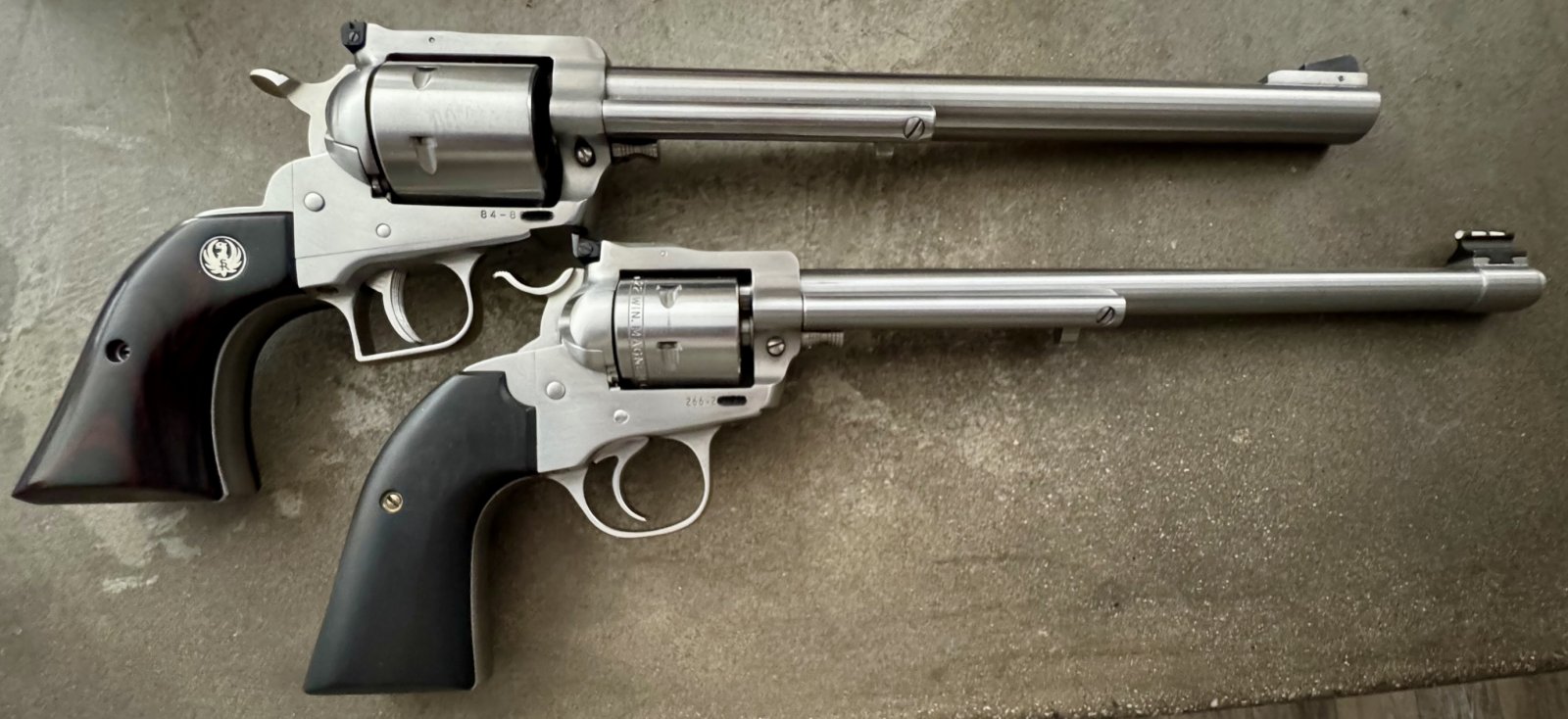

A fun picture with its BIG Sister 10.5" Super Blackhawk.
