Single Action Grip Frames Explained

[BigPapa53]

Any idea where is that drawing with all grips outlines combined? If I remembered correctly, it was here on this forum, but I couldn't find it any more.

Thanks

Much confusion surrounds the Ruger Single Action Grip Frames. Lucky for us, Boge Quinn has graciously allowed us to "link" a page from their gunblast.com web site.

https://www.gunblast.com/Hamm_Ruger-SA-GripFrames.htm



[Onty]

THANK YOU SIR!!!



[Hondo44]

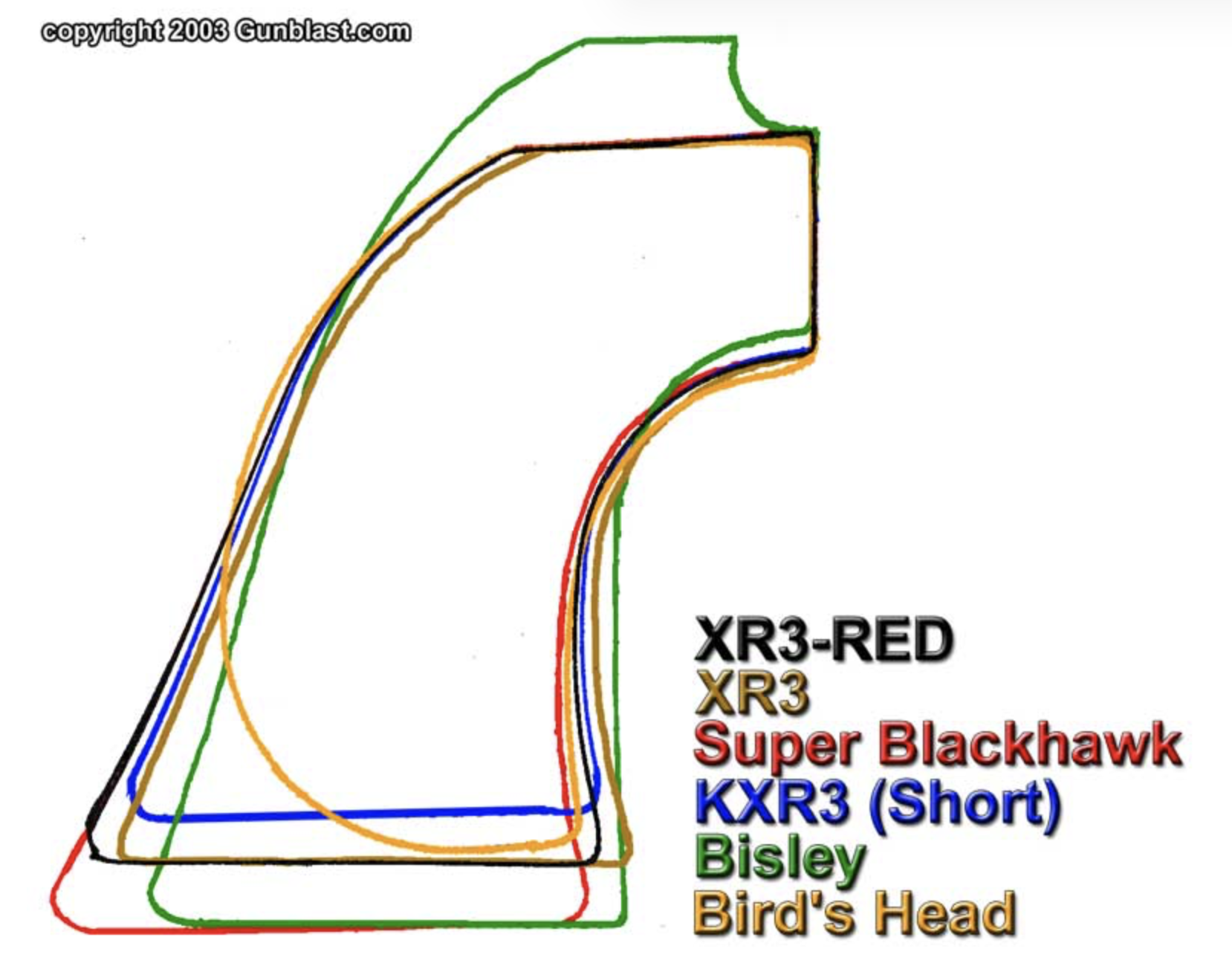

This one from post 38 may also be helpful to see the difference between the XR3 (pre 1963 OMs and NM Flattop Blackhawks and New Vaqueros) and XR3-RED (redesigned) size, the most common grip shape by far.:
