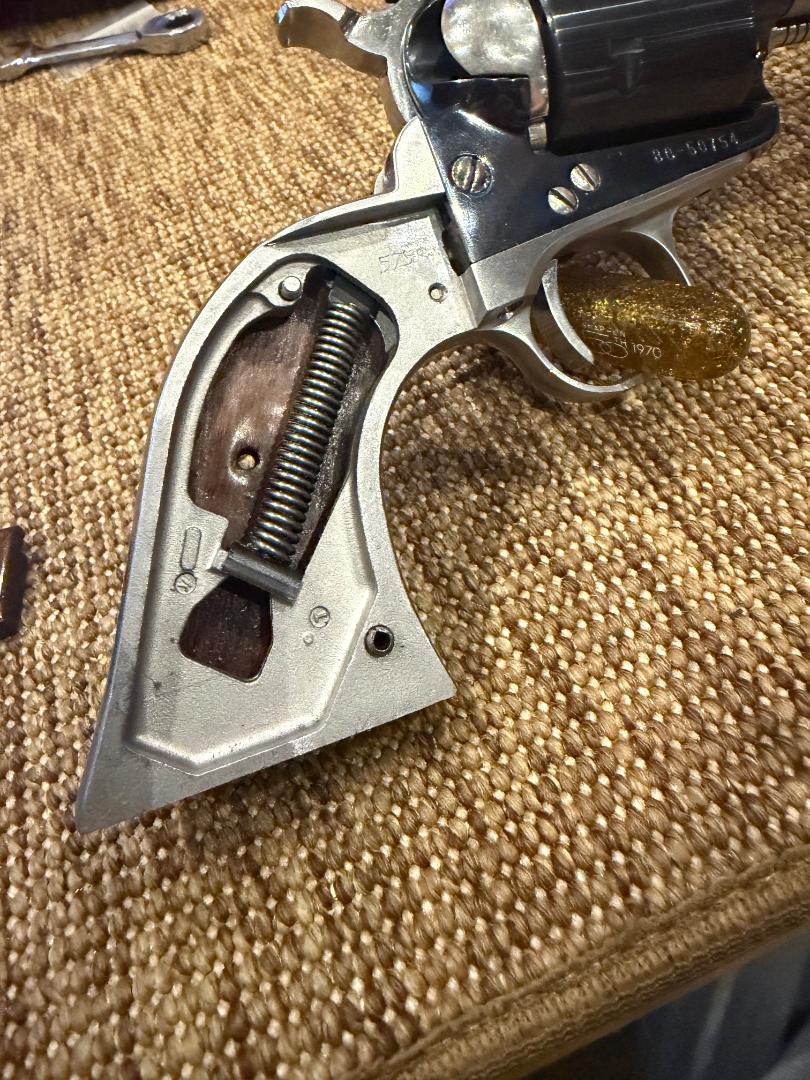

OM SBH Project - Here is what I had planned but decided not to proceed. The cylinder frame has a hole in the top strap (previous owner scope mount) - I was going to send to Alan Harton to have the hole welded and the frame Color Case Hardened. And, have one of the 7 1/2" barrels cut to 5 1/2"... so, decided to part out. The following parts are either chrome or nickel plated: Hammer, Trigger, Loading Gate, Action Screws, Dimpled Ejector Rod, Base Pin & Base Pin Latch. The Grip Frame is Stainless as well as the Ejector Housing. The Grip Frame has the adapter to allow the OM Plunger/Action. All prices include shipping.

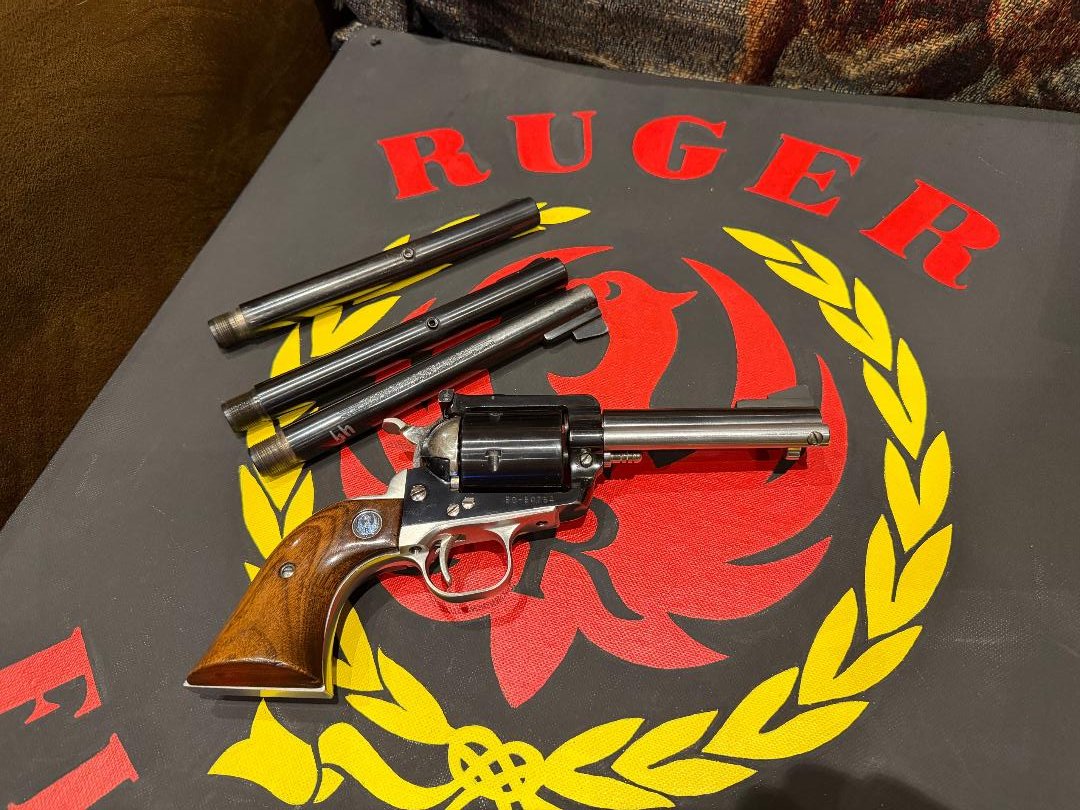

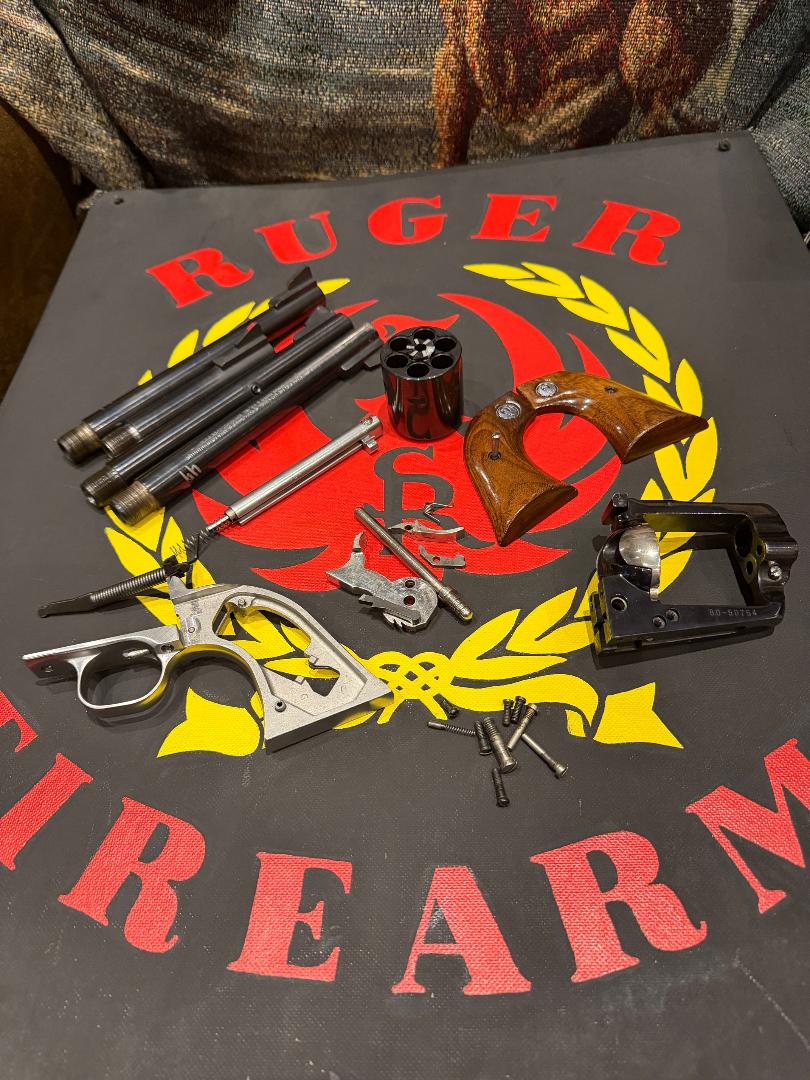

Last picture shows gun put together (barrel not fitted) just to show parts...

$200 OM Parts Kit (hammer, trigger, base pin, pawl, bolt, bolt spring) SOLD to BlackEagle
$100 - Grip Frame & Grips SOLD to RatCat454
$125 - OM Recessed Cylinder - SOLD to Brant

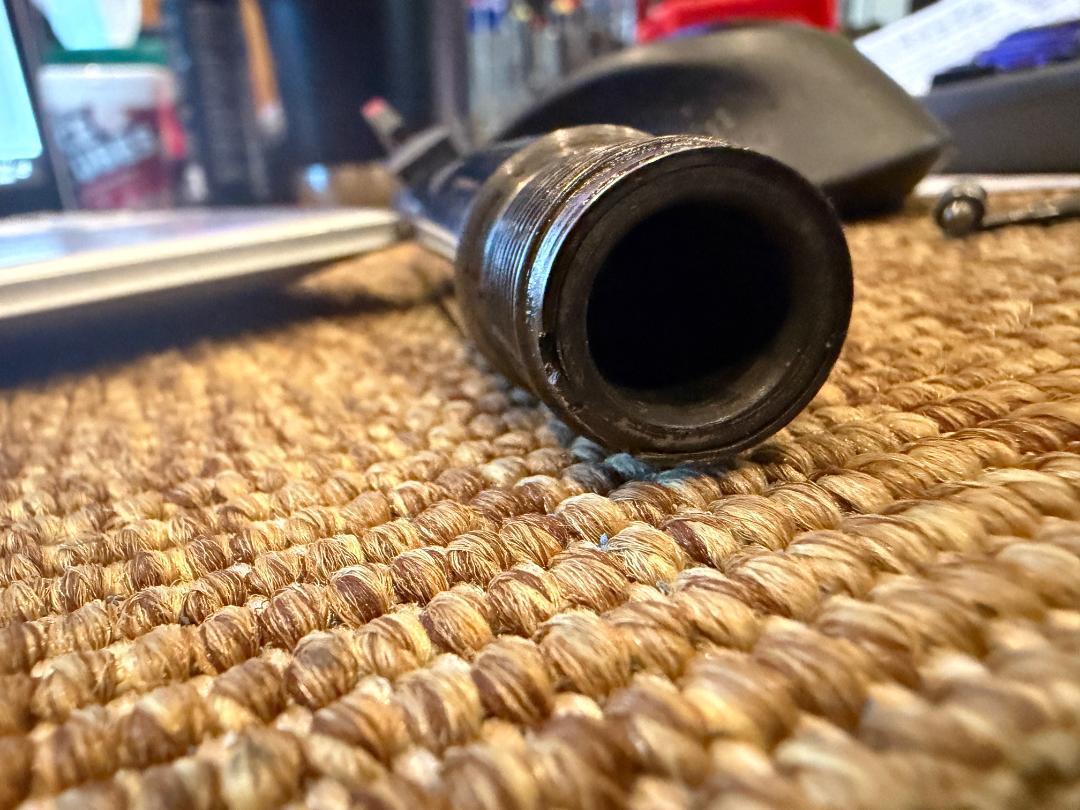

$75 - Barrels (2ea. NM 7 1/2" barrels, 1 ea. 7 1/2" Made in 200th Year Liberty, 1 ea. OM Sleeved .44 Barrel 4 5/8") SOLD to RatCat454
$50 - Stainless Ejector Housing and Dimpled Ejector Rod SOLD to RatCat454
$275 - SBH Cylinder Frame w/loading gate, rear sight, action screws & grip frame screws. SOLD offsite



[Brant]

I’ll take the cylinder please.



[thedogdidit]

I’ll take the cylinder please.

Great snag Brant!

@jussbad Can I get some more info on the NM to OM adapter in the grip frame? Pix, or manufacturer?
I am looking for one of those for a project I am starting. NM SBH frame on a Liberty ROA.



[nrobe50]

does anyone sell the adapters?



[jussbad]

Great snag Brant!

@jussbad Can I get some more info on the NM to OM adapter in the grip frame? Pix, or manufacturer?
I am looking for one of those for a project I am starting. NM SBH frame on a Liberty ROA.

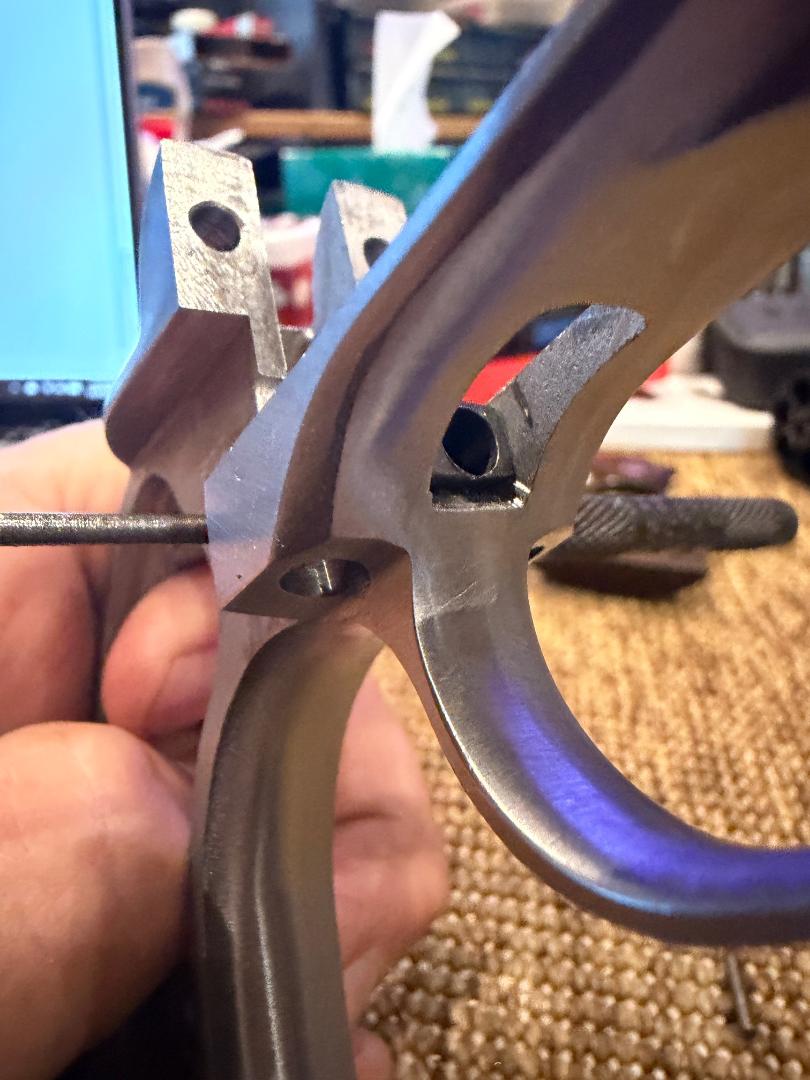

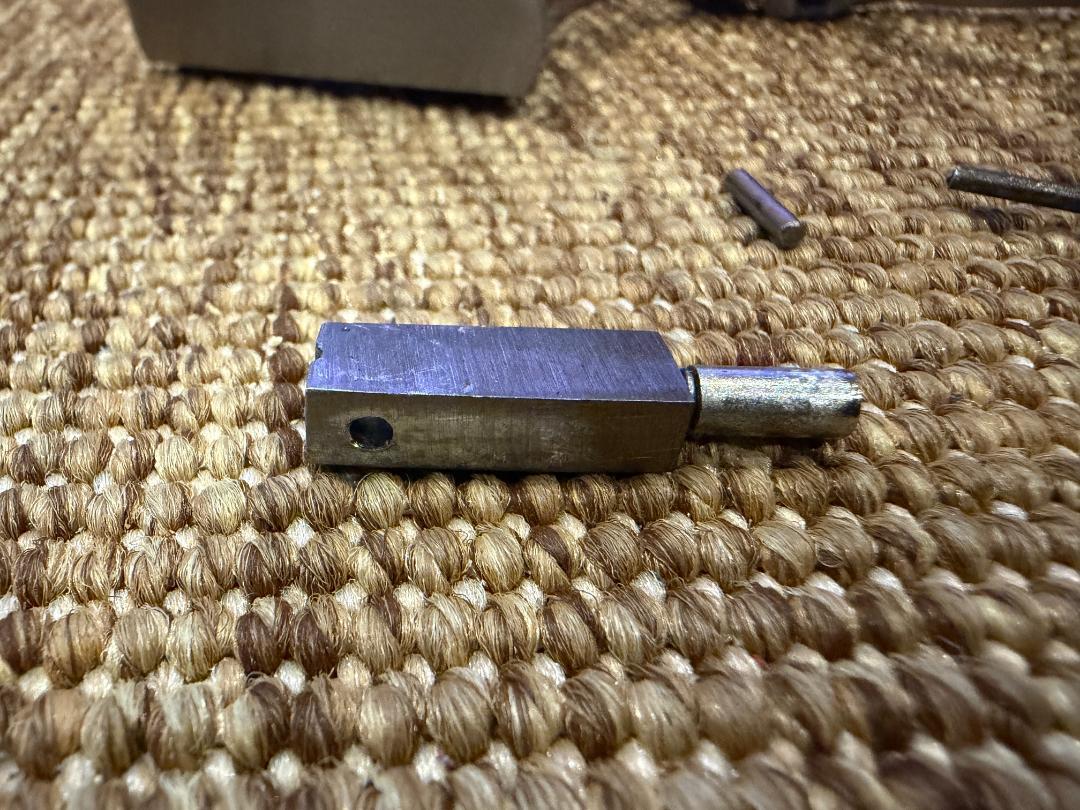

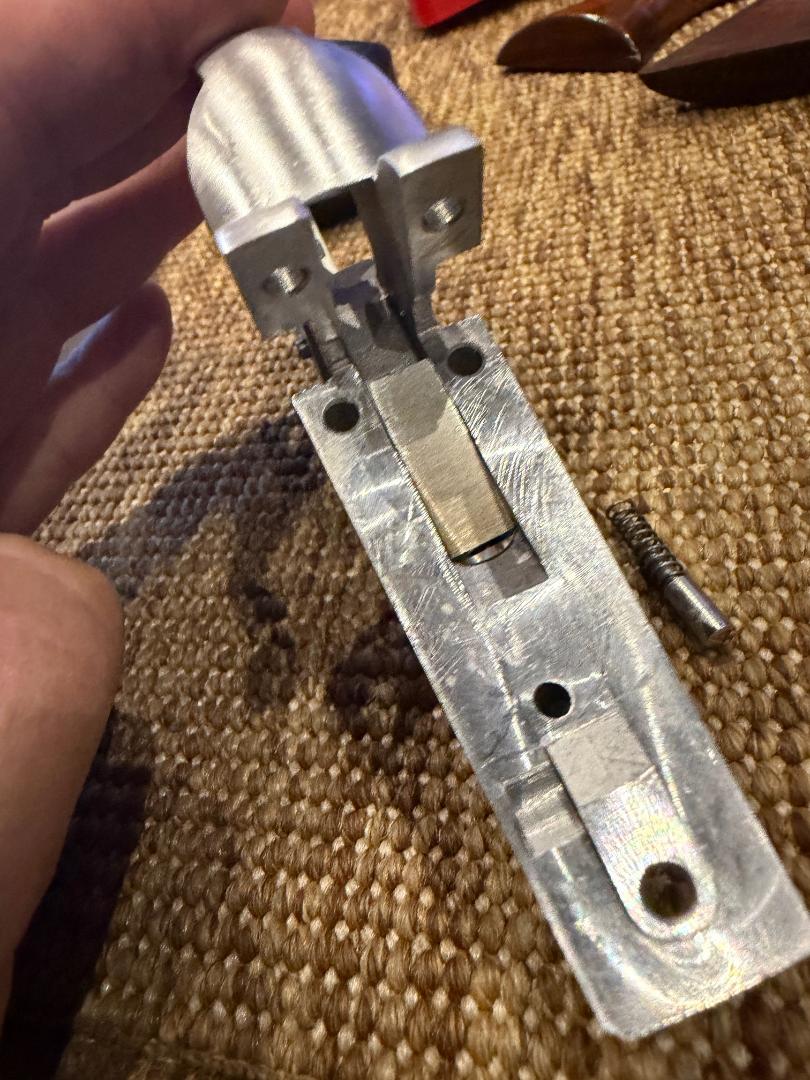

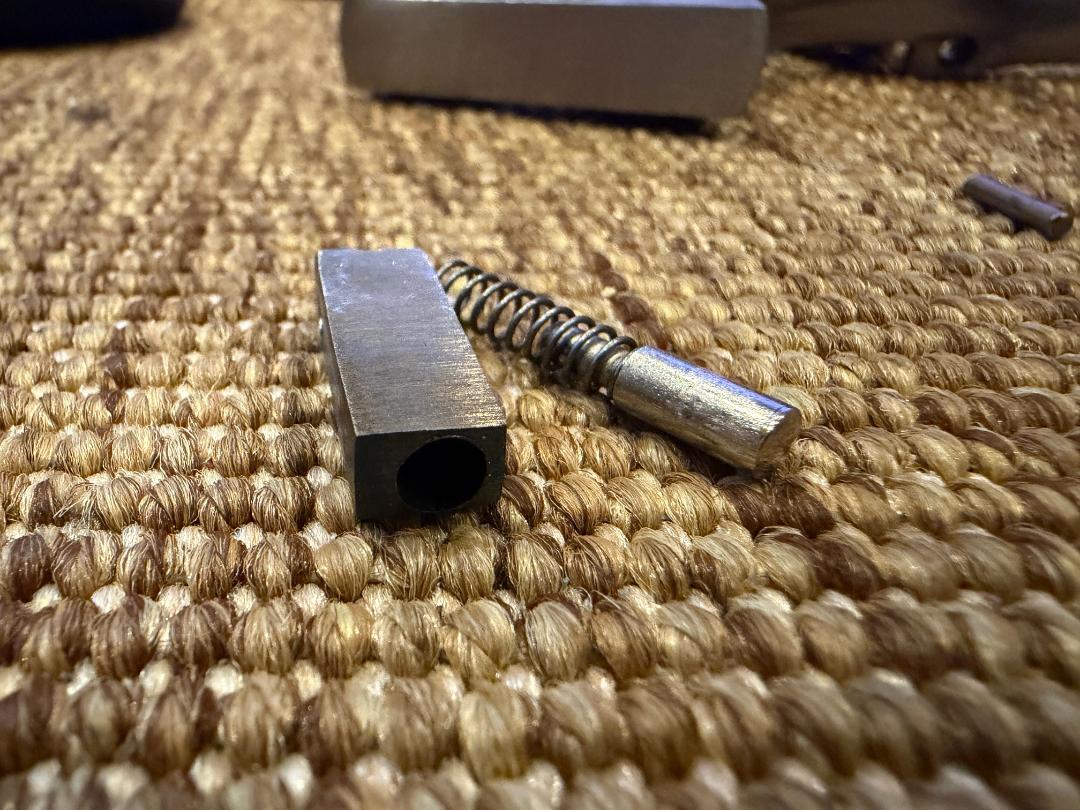

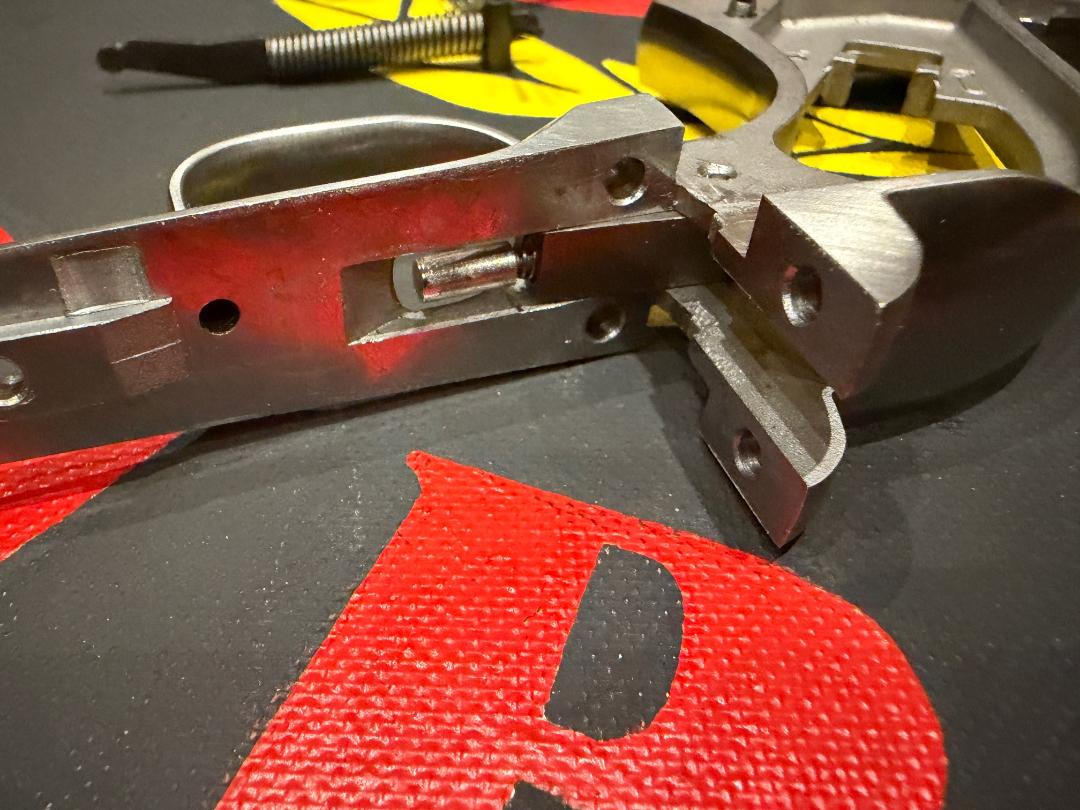

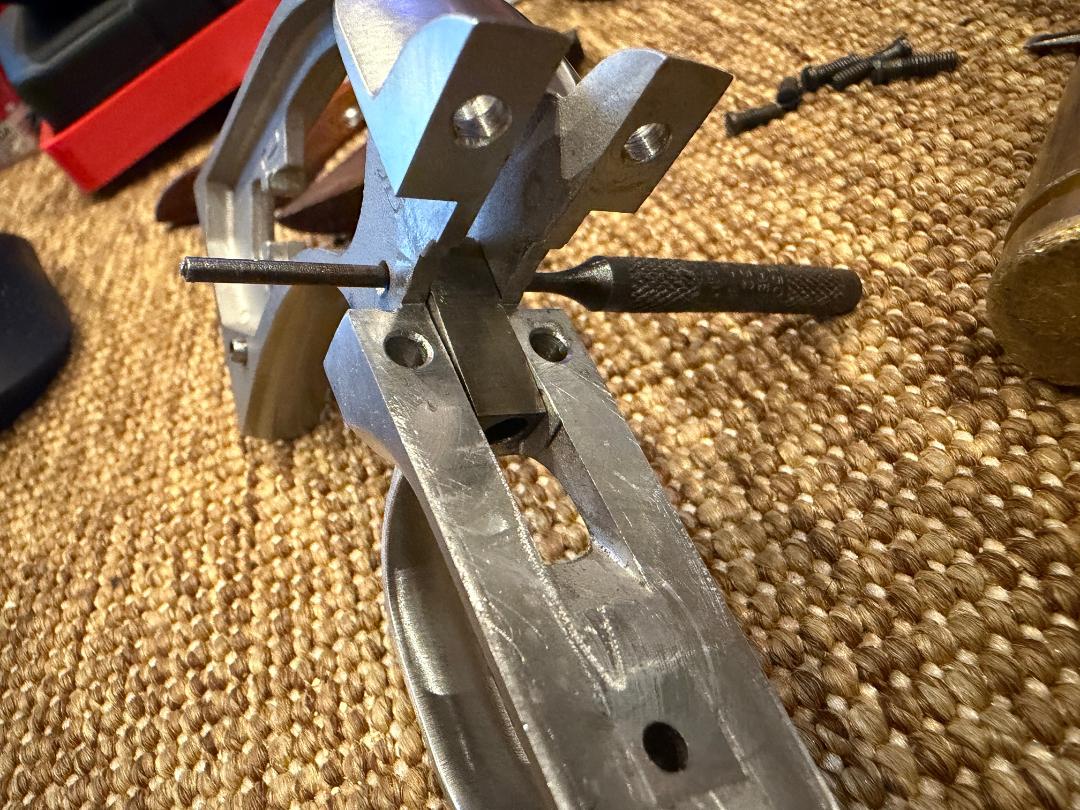

Not sure if these pictures will help. You can make the spring/plunger holder out of just about any material: aluminum, steel, brass, plastic... pretty easy to do.



[thedogdidit]

Those pix are VERY much appreciated!!
One more favor. Can I get the dimensions of the adapter piece itself? I hope I am not asking too much.



[Joey]

Those pix are VERY much appreciated!!
One more favor. Can I get the dimensions of the adapter piece itself? I hope I am not asking too much.

I think it was Hondo44 that makes them out of .22 shells. I put one in a frame I have and it works. I think the pin is used as a stop. I don't have a pin, so I didn't install one to try it. If Hondo can chime in, he can give you full details.



[Joey]

Those pix are VERY much appreciated!!
One more favor. Can I get the dimensions of the adapter piece itself? I hope I am not asking too much.

Here's Hondo's post on it. Sounds simple!

H

Post in thread 'Single Six rescues'

Feb 21, 2026

I used to make the OM trigger spring adapter. .

But I put so many NM grip frames on OMs I discovered a simpler adapter, a .22 LR case.
Install the forward NM trigger spring pin in the front hole in the grip frame. Then as you install the grip frame, drop the 22 case with the trigger spring and plunger inside of it, into the trough in the grip frame at the rear of the trigger guard. Install the grip frame. The 22 case is captured in place by the spring tension in front, the pin at the rear, and the bottom of the hammer base on top. It's not even visible once assembled...

• Hondo44

•



[thedogdidit]

Here's Hondo's post on it. Sounds simple!

H

Post in thread 'Single Six rescues'

Feb 21, 2026

I used to make the OM trigger spring adapter. .

But I put so many NM grip frames on OMs I discovered a simpler adapter, a .22 LR case.
Install the forward NM trigger spring pin in the front hole in the grip frame. Then as you install the grip frame, drop the 22 case with the trigger spring and plunger inside of it, into the trough in the grip frame at the rear of the trigger guard. Install the grip frame. The 22 case is captured in place by the spring tension in front, the pin at the rear, and the bottom of the hammer base on top. It's not even visible once assembled...

• Hondo44

•

Also in the following link: https://www.rugerforum.com/threads/ruger-old-army-grip-frame-question.314124/#post-3192260

The link you found is much better though. 1st one with a pic of the 22 that I have seen. I had been searching for quite some time now.
I again apologize to Jussbad for turning your listing into just another post that can go in a different forum. Not my intent sir.
But Joey, I darn sure appreciate your coming to my rescue.
Jussbad, I wish you lots of luck with your sale



[Joey]

My apologies to Jusbad as well. A great guy.



[thedogdidit]

TTT



[jussbad]

BTT



[RatCat454]

If the "Stainless Ejector Housing and Dimpled Ejector Rod" is for an Old Model studded barrel, I will take it.



[jussbad]

I will ta

If the "Stainless Ejector Housing and Dimpled Ejector Rod" is for an Old Model studded barrel, I will take it.

It is for a studded barrel

I will ta

If the "Stainless Ejector Housing and Dimpled Ejector Rod" is for an Old Model studded barrel, I will take it.

It is for a studded barrel



[RatCat454]

I will definitely take the ejector housing and the grip frame with panels and trigger plunger adapter.

If it is all four barrels for $75, I will take them as well.

DM inbound.



[jussbad]

Yes, all the barrels for $75



[jussbad]

PM answered - Thanks



[DGW1949]

I'm on the fence about the "OM Parts kit".....I'd sure like to have the hammer for my old, nickled BH, but I have zero use for the rest of the "kit"........If you ever decide to sell it separately, please let me know.

DGW



[jussbad]

BTT



[RatCat454]

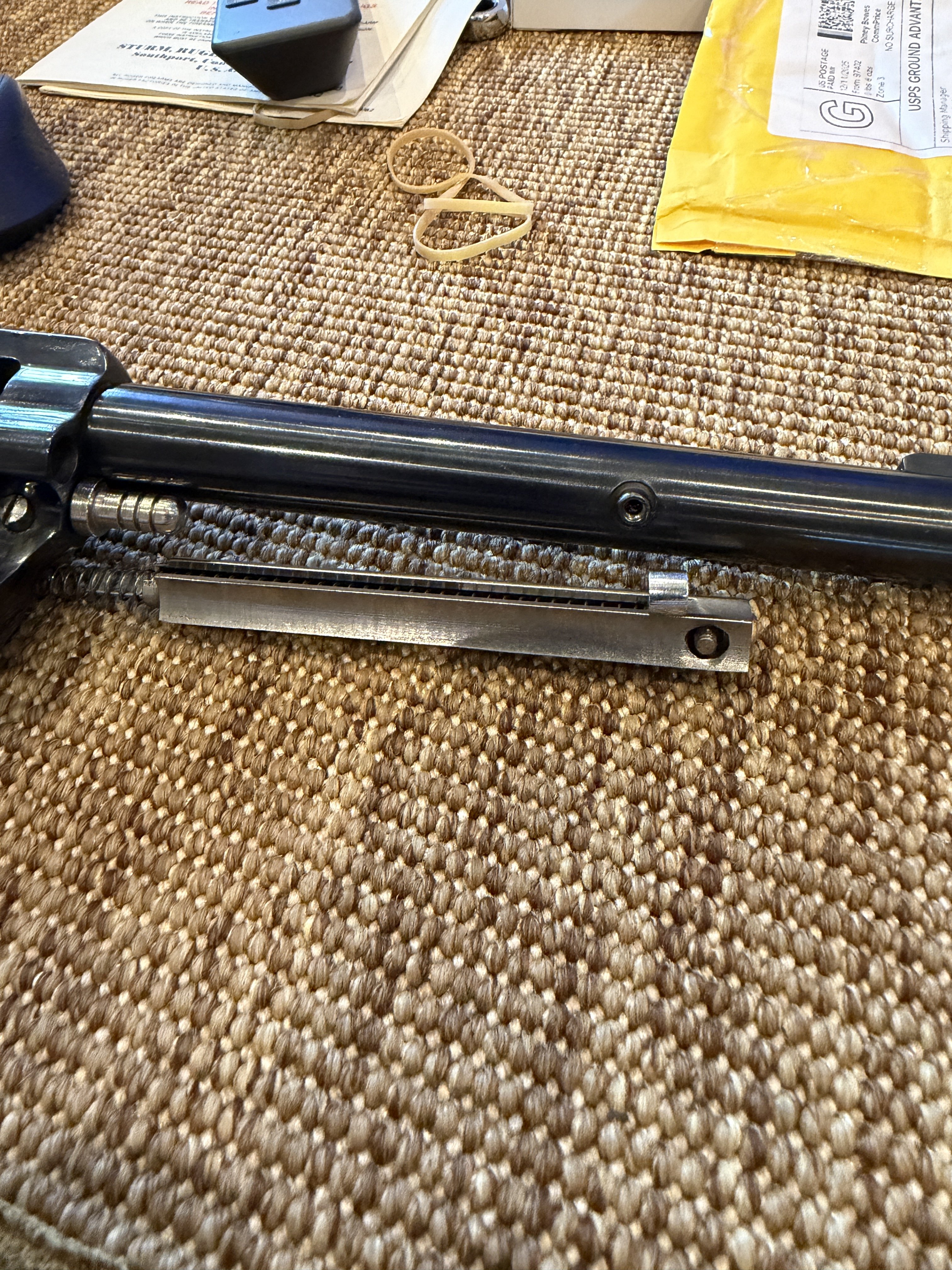

The items received from jussbad are in most excellent condition. I have already installed the Liberty barrel and ejector assembly.



[el caminero]

Is the sbh cyl frame still available?
I found a 2-screw parts gun, 10" 44mag, i was going to mount a scope on, it came w/o gripframe (i have several of those) and came with a 7-1/2" 3-screw 44 sbh that i WILL NOT be drilling...thinking of building a 'truck gun" to go with some other bits i have



[jussbad]

Sorry that was sold offsite - I have updated the post. Thanks for inquiring.



[el caminero]

No worries. I will be drilling the nm 2-screw for the scope, then.



[jussbad]

BTT - OM Parts Kit still available.



[el caminero]

BTT - OM Parts Kit still available.

No worries, those i got some of, too.



[BlackEagle]

I’ll take the OM parts kit



[jussbad]

I’ll take the OM parts kit

Sold to BlackEagle - PM sent.
